2016-2023 Toyota Tacoma High Clearance Rear Bumper


SKU: 2016plusSTANDARDREAR-1 Category: Tags: , , , , ,


High Clearance Tacoma rear bumpers require cutting the bedsides and are designed to give much better clearance and departure angle.  Features Included:

  • Built from CNC cut and brake formed 3/16″ HRPO steel plate with 1/4″ mounting plates.
  • 3/4″ thick shackle tabs pass through the bumper and welded front and back.
  • 10 bolt locations makes mounting rock solid.  Mounts to factory threaded frame holes and requires cutting bedsides for install.  Clear written instructions are included.
  • Holes for flush mount LED pods as backup lights.  Fits Diode Dynamics SS3 flush mounts, Rigid Industries D series flush mounts, and the generic flush mount led pods found on ebay/amazon.  Adapter plates for Baja Designs Squadrons or S2 lights are available for a small charge.
  • Hi-Lift jack slots for safer lifting.
  • Standard 2” receiver included, either hidden behind plate or under license plate (your choice).  Hidden receivers include a flip up license plate bracket.  Receiver hitches are not officially load rated, but built plenty beefy.  Receiver tube is reinforced with 2”x2”x.120” tubing spanning between the mounting plates.
  • Includes replacement LED license plate lights (splicing into factory harness req’d)
  • Trailer plug gets relocated under the bumper using included bracket…tucked up and out of the way.
  • Not compatible with blind spot monitoring system.  The sensors only work through plastic.  Sensors will be disconnected and not reused.
  • Holes for backup/sonar sensors are available.

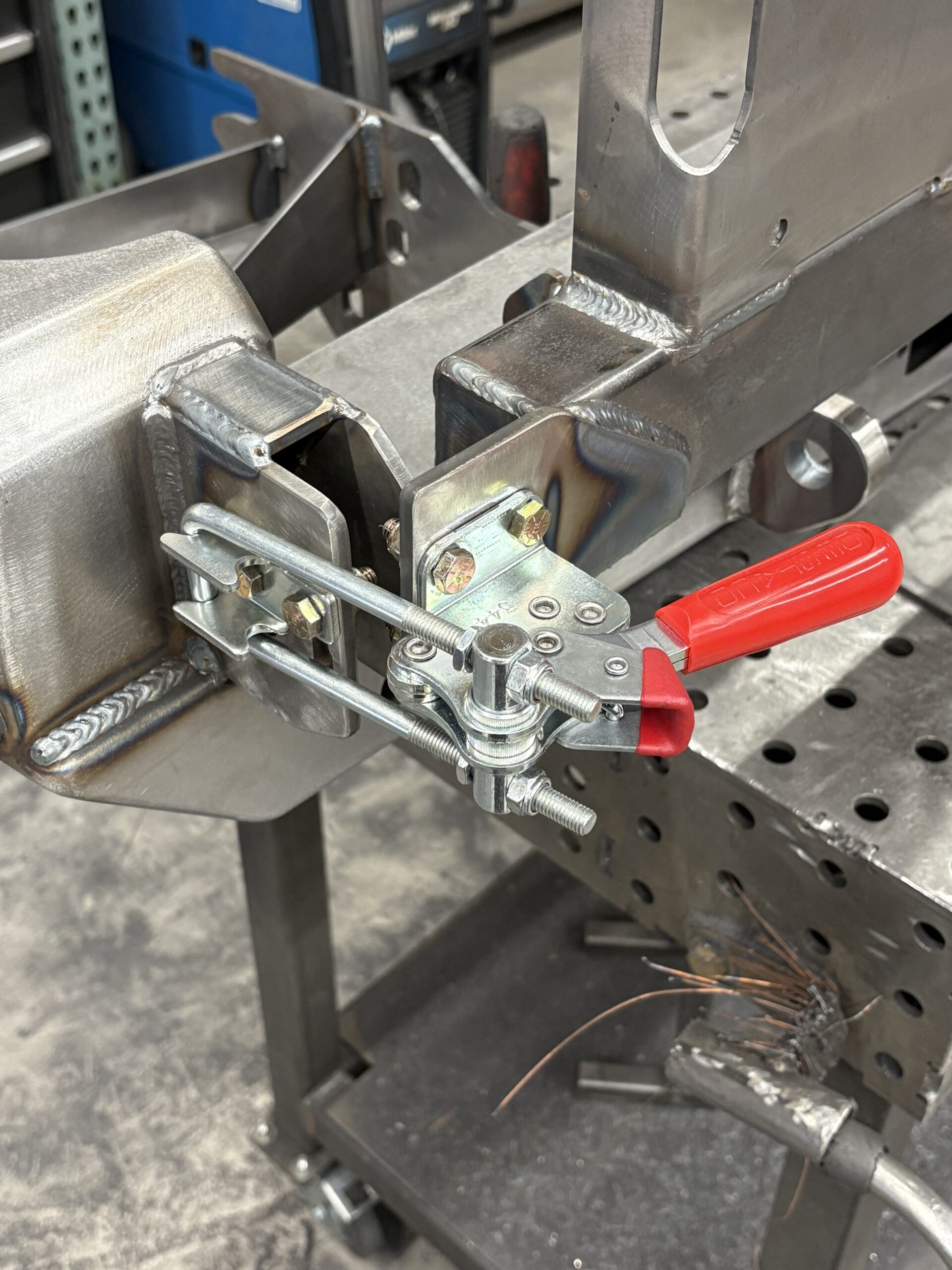

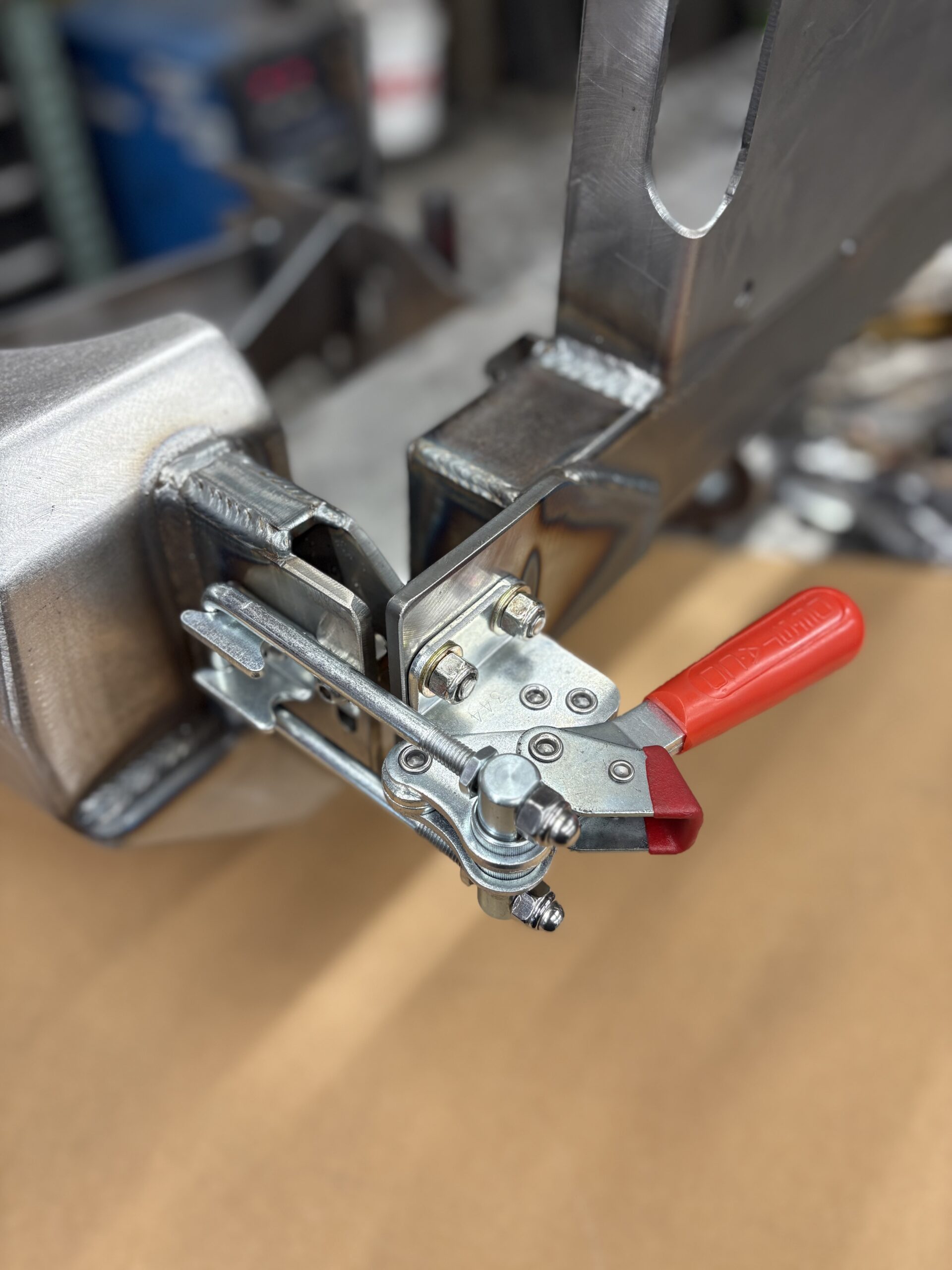

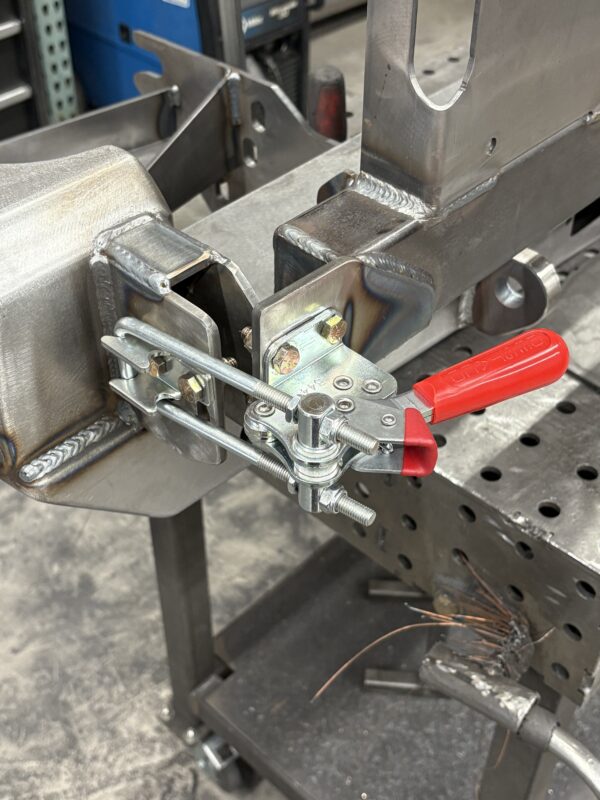

  • Tire carriers hold up to a 35″ tire and ready for Rotopax mounting.  They are built from 2” x 3” x .120” box tubing, 1.75” x .120” round tubing, 11 ga cold roll sheet, and fully gusseted.
  • Tire carriers are built with an angled tire mount by default, but can be special ordered with a vertical tire mount upon request.
  • Camera relocation kit is included with tire carrier.  Kit includes camera mounting bracket and wire to extend harness.  Splicing into OEM harness is required.
  • Tire carriers are optional, but must be built with the bumper.  They cannot be added afterward.
  • Weight:  120 lbs without tire carrier, 190 lbs with tire carrier.

Available in bare steel only Designed, built, and tested in the USA **Bumpers are built to order and lead times vary depending on current workload.  Orders can be taken on a $100 deposit, email morgan@athfab.com for more info.  HC Tacoma rear bumpers ship truck freight due to their size and weight.  Domestic freight ranges from $200-$400 to your nearest terminal or a business address with loading dock or forklift.  Please email morgan@athfab.com for a shipping quote.  Shipping charges will be invoiced when bumper is ready to ship. Local pickup in Gardnerville NV is welcome!


Fits: 2016 Toyota Tacoma, 2017 Toyota Tacoma, 2018 Toyota Tacoma, 2019 Toyota Tacoma, 2020 Toyota Tacoma

Additional information


Without backup sensor holes no tire carrier, With backup sensor holes no tire carrier, Without backup sensors add tire carrier, With backup sensors add tire carrier
